Wilsons Cloud Chamber
Product Code : JA-APE-9390

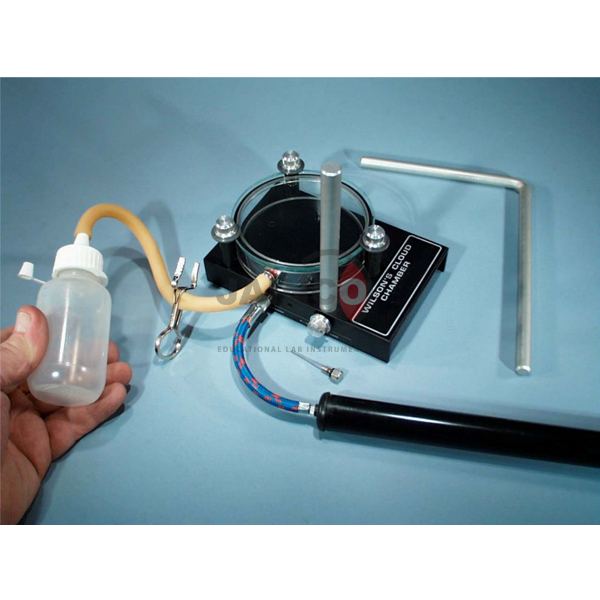

The Wilsons Cloud Chamber (SKU JA-APE-9390) is an expansion cloud chamber for making the tracks of ionising radiation visible in school and college atomic physics lessons. This Wilson cloud chamber with vacuum pump has its chamber fitted to a base assembly by three clamping screws, a point source rod that screws into a storage hole in the edge of the base, and a vacuum pump, a modified bicycle pump with the hose fitted into the handle, used to expand the air in the chamber so that tracks form.
Specifications
The chamber is supplied with its base assembly, a 12 mm base support rod with knurled-head attachment screw, point source rod, vacuum pump, puffer bottle and hose, small squeeze bottle and filter disc for radioactive material, support rod for lamp illumination, flexible tubing and a Mohr clip.
| Product | Wilsons Cloud Chamber |
| SKU | JA-APE-9390 |
| Chamber mounting | Base assembly with chamber fitted by 3 clamping screws |
| Support rod | 12 mm diameter, with knurled-head attachment screw |
| Source rod | Point source rod, screws into a storage hole in the edge of the base |
| Vacuum pump | Modified bicycle pump with hose fitted into the handle |
| Accessories | Puffer bottle and hose; small squeeze bottle and filter disc to hold radioactive material; support rod for lamp illumination |
| Fittings | Flexible tubing and Mohr clip |
Experiments with the Wilson cloud chamber
In the chamber, a sudden expansion cools the air so that vapour condenses along the paths of charged particles from a source, giving visible tracks that students can observe and compare.
- Observing the tracks of alpha particles from a point source
- Comparing track length and density for different radiations
- Demonstrating the ionisation of air by radiation
- Introducing particle detection in nuclear physics lessons
Scope of supply
The listing covers the chamber and base assembly with the accessories listed above. Radioactive sources, the illumination lamp, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and delivery destination. JaincoLab supplies atomic and nuclear physics apparatus to colleges, schools and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
Frequently asked questions
How is the expansion produced?
With the supplied vacuum pump, a modified bicycle pump with the hose fitted into the handle.
Where is the radioactive material held?
On the point source rod, which screws into a storage hole in the edge of the base; a small squeeze bottle and filter disc are also provided to hold radioactive material.
What is supplied for illumination?
A support rod for lamp illumination is supplied; the lamp itself is confirmed on the quotation.
What should a quotation request include?
Send the SKU JA-APE-9390, the quantity, any sources or lamps needed and the delivery destination.
