Wooden Lens Holder
Product Code : JA-LOE-7878

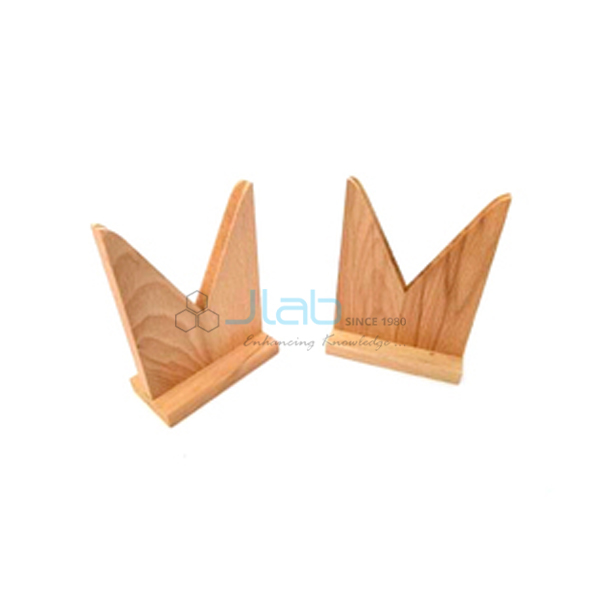

The Wooden Lens Holder (SKU JA-LOE-7878) is a simple stand that holds a convex or concave lens, or a mirror, upright on the bench for optics practicals. A 100 mm high upright with a V-shaped slot sits on a 100 x 50 mm rectangular base and takes lenses or mirrors up to 76 mm in diameter. This wooden lens and mirror holder is manufactured in India by JaincoLab for school and college physics laboratories.
Specifications
The holder is made of wood and comprises a 100 mm high upright with a V-shape slot on a 100 x 50 mm rectangular base, with an index mark engraved at each end of the base for reading its position against a scale.
| Product | Wooden Lens Holder |
| SKU | JA-LOE-7878 |
| Material | Wood |
| Upright | 100 mm high with V-shape slot |
| Base | Rectangular, 100 x 50 mm |
| Takes | Lenses or mirrors up to 76 mm diameter |
| Markings | Index mark engraved on each end of the base |
Applications of the wooden lens and mirror holder
The wooden holder is used on the bench or beside a metre rule to stand a lens or mirror upright at a known position, which is what focal-length and image-formation practicals need when students measure object and image distances.
- Finding the focal length of a convex lens by the distant-object or u-v method
- Holding a concave mirror to locate real images on a screen
- Standing lenses and mirrors beside a metre rule and reading positions from the index marks
- Ray and image demonstrations in middle-school light chapters
- Combining two lenses to show a simple telescope arrangement
Scope of supply
Each unit is one wooden holder with its V-slot upright and engraved base. Lenses, mirrors, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation confirms the MOQ, packing and lead time for the quantity of holders and the delivery destination. JaincoLab supplies class sets for individual schools and bulk orders for colleges, education projects and export customers in Africa, the Middle East and South and South-East Asia.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
Frequently asked questions
What size of lens or mirror does the holder take?
It takes lenses or mirrors up to 76 mm in diameter.
How is the lens held?
It sits in a V-shape slot in a 100 mm high upright mounted on a 100 x 50 mm rectangular base.
What are the index marks for?
An index mark is engraved on each end of the base so that the position of the lens or mirror can be read against a scale.
What should a quotation request include?
Send the SKU JA-LOE-7878, the number of holders, any lenses or mirrors needed with them and the delivery destination.
