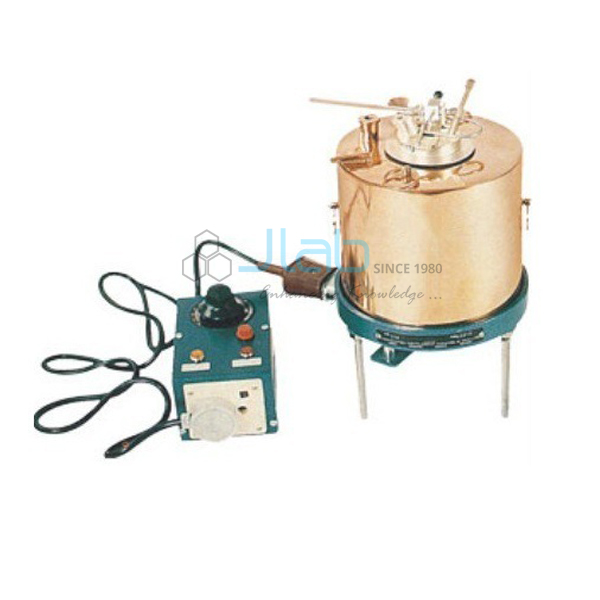

Abel Flash Point Apparatus
Product Code : JA-ALI-1703
The Abel Flash Point Apparatus from Jaincolab is used for determining the closed cup flash point of petroleum products, their mixtures, other liquids, and paints, having flash points between 19°C and 49°C. It is supplied by Jaincolab to petroleum testing laboratories across India and internationally.
The Abel flash point apparatus is electrically heated, with a gas test jet and electric heater, an energy regulator, and is suitable for operation on 220V, single phase, 50Hz AC supply. Each instrument bears a test certificate of the National Physical Laboratory and is supplied complete with an oil cup, a cover fitted with a gas test jet assembly, a water bath, and a tripod stand, but without a thermometer, in a wooden carrying case. As a manufacturer certified to ISO 9001:2015 and ISO 14001:2015, Jaincolab also supplies a version without NPL Certificate.
Abel Flash Point Apparatus Specifications
| Component / Attribute | Detail |
|---|---|
| Flash Point Range | 19°C to 49°C (closed cup) |
| Heating | Electrical heating with gas test jet and electric heater |
| Power Supply | 220V, single phase, 50Hz, AC supply |
| Standard Supply | Oil cup, cover with gas test jet assembly, water bath, tripod stand, wooden carrying case (without thermometer) |
| Certification | Bears NPL test certificate; also available without NPL Certificate |
| Replacement Part | Abel Oil Cup with lid, shutter, and gas test jet, brass |
| Optional Extras | Heating Element; Abel oil cup thermometer IP 74 (Range: -35°C to +70°C); Abel water bath thermometer IP 75 (Range: -30°C to +80°C) |
Key Features
- Determines closed cup flash point of petroleum products, mixtures, liquids, and paints between 19°C and 49°C
- Electrically heated with gas test jet, electric heater, and energy regulator
- Bears a National Physical Laboratory test certificate
- Supplied complete with oil cup, water bath, and tripod stand in a wooden carrying case
- Replacement oil cup and optional thermometers available
- Manufactured under ISO 9001:2015 and ISO 14001:2015 certified processes
Why Choose Jaincolab
Jaincolab supplies the Abel Flash Point Apparatus as part of its Analytical Lab Instrument range for petroleum testing. For open cup flash point determination, laboratories can refer to Jaincolab's Flash Point Cleveland Apparatus, and for closed cup testing at higher temperature ranges, the Flash Point Pensky Martens (Closed) apparatus is available. All of these are part of Jaincolab's wider Analytical Lab Instrument category, backed by ISO 9001:2015 and ISO 14001:2015 certified manufacturing and supply to laboratories across India and internationally.
Applications
| Setting | Use Case |
|---|---|
| Petroleum Testing Laboratories | Determining closed cup flash point of petroleum products and paints |
| Paint & Coatings Industry | Flash point testing of paints and low-flash liquids |
| Quality Control Departments | Routine safety testing of petroleum product batches |
Frequently Asked Questions
Q1. What does the Abel Flash Point Apparatus determine?
A1. It determines the closed cup flash point of petroleum products, their mixtures, other liquids, and paints having flash points between 19°C and 49°C.
Q2. Does the apparatus include a test certificate?
A2. Yes. Each instrument bears a test certificate of the National Physical Laboratory; a version without NPL Certificate is also available.
Q3. Is a thermometer included with the apparatus?
A3. The apparatus is supplied without a thermometer as standard. Abel oil cup and water bath thermometers are available as optional extras.
Q4. Is Jaincolab's manufacturing process certified?
A4. Yes. Jaincolab's manufacturing is certified to ISO 9001:2015 and ISO 14001:2015.
Q5. Does Jaincolab supply this apparatus outside India as well?
A5. Yes. Jaincolab supplies the Abel Flash Point Apparatus to laboratories and institutions across India and internationally.
Request a Quote
For pricing, specifications, and availability of the Abel Flash Point Apparatus, contact Jaincolab through the enquiry form on this page or write to [email protected]. Our team will get back to you with details suited to your laboratory's requirements.
