Cloud and Pour Point Apparatus
Product Code : JA-ALI-1579
The Cloud and Pour Point Apparatus from Jaincolab is used to determine the pour point of oils, the lowest temperature at which an oil will just fail to flow. It is manufactured according to the specification laid down by IP 15 and IS 1448 (P:10) 1970, and is supplied by Jaincolab to petroleum testing laboratories and industries across India and internationally.

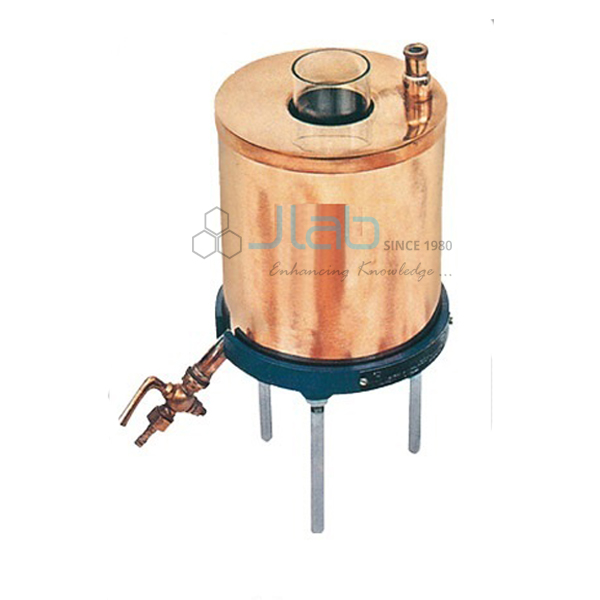

The pour point apparatus consists of a main cooling bath made out of S.S. sheet with a stand unit, drain plug, and a cover that has provision for fitting a thermometer and a filling aperture for adding freezing mixture. A glass jar for containing oils, along with a jacket, disc, and gasket as specified, is also provided. As a manufacturer certified to ISO 9001:2015 and ISO 14001:2015, Jaincolab supplies this apparatus to laboratories across India and internationally.
Cloud and Pour Point Apparatus Specifications
| Component / Attribute | Detail |
|---|---|
| Applicable Standard | IP 15 & IS 1448 (P:10) 1970 |
| Cooling Bath | Made of S.S. sheet, with stand unit and drain plug |
| Cover | Provision for fitting thermometer and a filling aperture for freezing mixture |
| Sample Container | Glass jar with jacket, disc, and gasket as specified |
| Thermometer IP 1C | Range: -38°C to +50°C |
| Thermometer IP 2C | Range: -80°C to +20°C |
Key Features
- Determines the pour point of oils as per IP 15 & IS 1448 (P:10) 1970
- Cooling bath constructed from S.S. sheet with drain plug and cover
- Cover has provision for thermometer fitting and a filling aperture for freezing mixture
- Supplied with glass jar, jacket, disc, and gasket
- Available with IP 1C and IP 2C range thermometers as extras
- Manufactured under ISO 9001:2015 and ISO 14001:2015 certified processes
Why Choose Jaincolab
Jaincolab supplies the Cloud and Pour Point Apparatus as part of its Analytical Lab Instrument range for petroleum and lubricant testing. Laboratories that also test flash and fire points can refer to Jaincolab's Flash Point tester and Abel Flash Point Apparatus, while those testing oil viscosity can pair this apparatus with the Redwood Viscometer. All of these are part of Jaincolab's wider Analytical Lab Instrument category, backed by ISO 9001:2015 and ISO 14001:2015 certified manufacturing and supply to laboratories across India and internationally.
Applications
| Setting | Use Case |
|---|---|
| Petroleum Testing Laboratories | Determining pour point of lubricating and fuel oils |
| Quality Control Departments | Routine cold-flow property checks on oil batches |
| Engineering & Research Institutes | Teaching and research on petroleum product properties |
Frequently Asked Questions
Q1. What does the Cloud and Pour Point Apparatus measure?
A1. It measures the pour point of oils, the lowest temperature at which an oil will just fail to flow, as per IP 15 and IS 1448 (P:10) 1970.
Q2. What is the cooling bath made of?
A2. The main cooling bath is made out of S.S. sheet, with a stand unit, drain plug, and a cover with thermometer fitting provision.
Q3. What thermometers are used with this apparatus?
A3. Thermometer IP 1C (Range: -38°C to +50°C) and Thermometer IP 2C (Range: -80°C to +20°C) are supplied as extras.
Q4. Is Jaincolab's manufacturing process certified?
A4. Yes. Jaincolab's manufacturing is certified to ISO 9001:2015 and ISO 14001:2015.
Q5. Does Jaincolab supply this apparatus outside India as well?
A5. Yes. Jaincolab supplies the Cloud and Pour Point Apparatus to laboratories and institutions across India and internationally.
