Training Board of Flip Flops
Product Code : JA-DET-1520

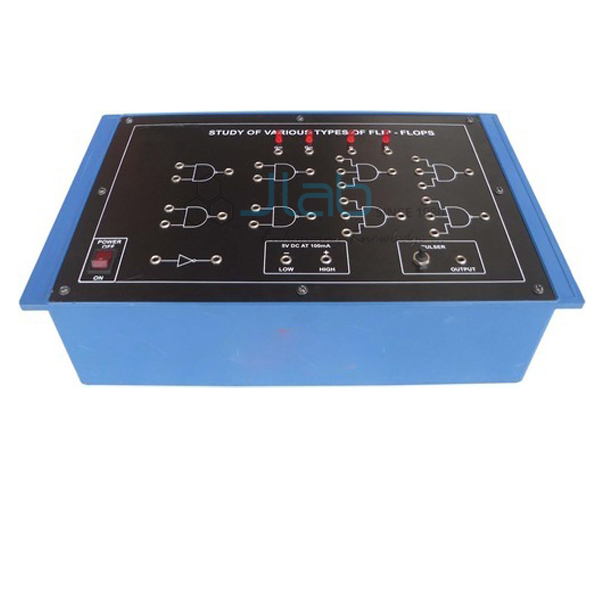

Training Board of Flip Flops
The output of the Flip-Flops can be observed with the help of logic level indicators (LEDs), which are provided on the panel.
The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To construct the following Flip-Flops and study their characteristics:
R.S. Flip-Flop without clock
R.S. Flip-Flop with clock
D Flip-Flop
J-K Flip-Flop
T Flip-Flop
Master Slave J-K Flip-Flop
Features:
The board consists of the following built-in parts :
+5V D.C. at 100mA, IC regulated power supply
Four, 2-input NAND gates
Four, 3-input NAND gates
One inverter (NOT gate)
Four LEDs with driver circuit to observe the output of flip-flops
A pulser to provide the pulses manually for triggering
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate nos. of patch cords stackable from rear both ends 4mm spring loaded plug, length ½ metre
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
